DSPRO HARDWOOD Decking Screw (Loose)

Product Tabs

Product Details

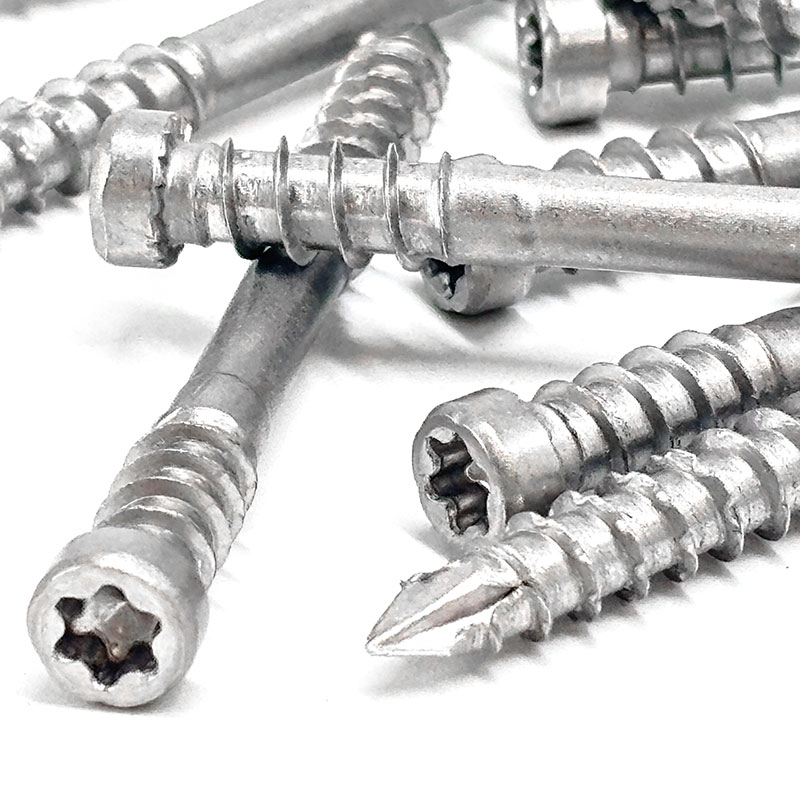

DSPRO

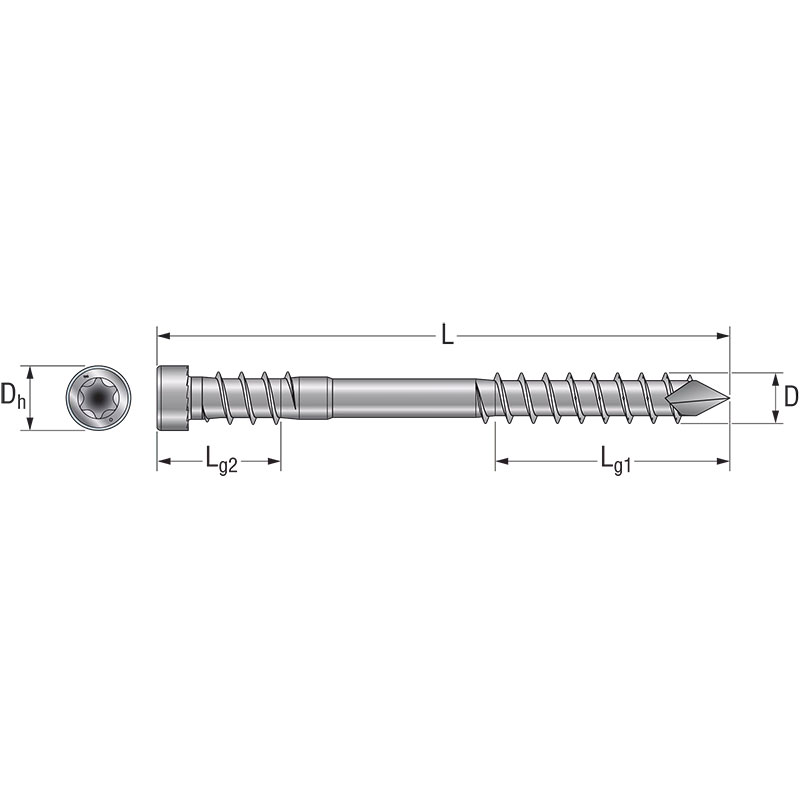

DSPRO Illustration

DBWOODDSPRO Countersink Drill Bit

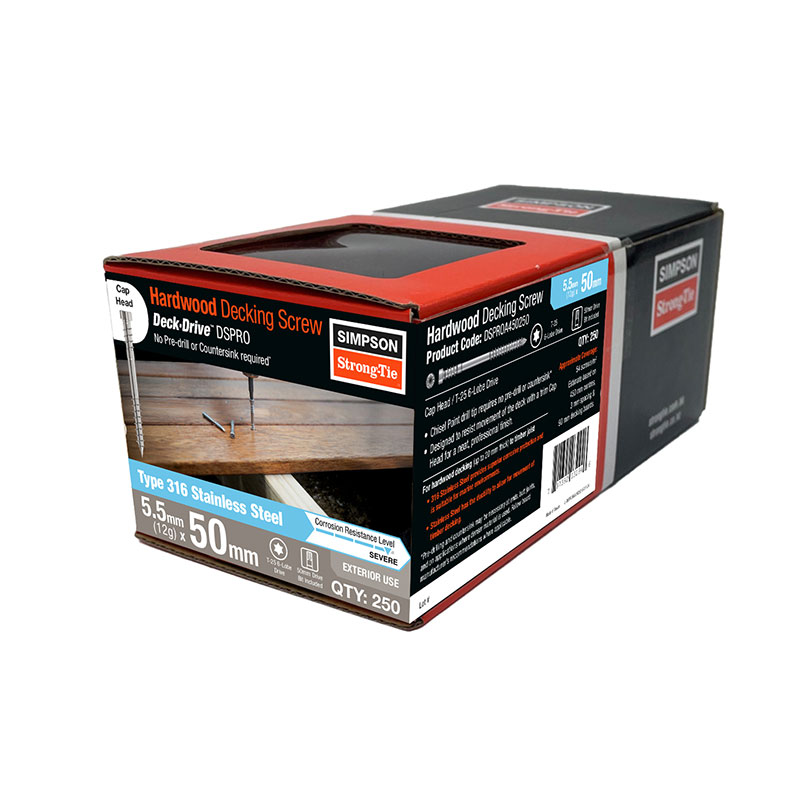

DSPROA450R250_Packaging

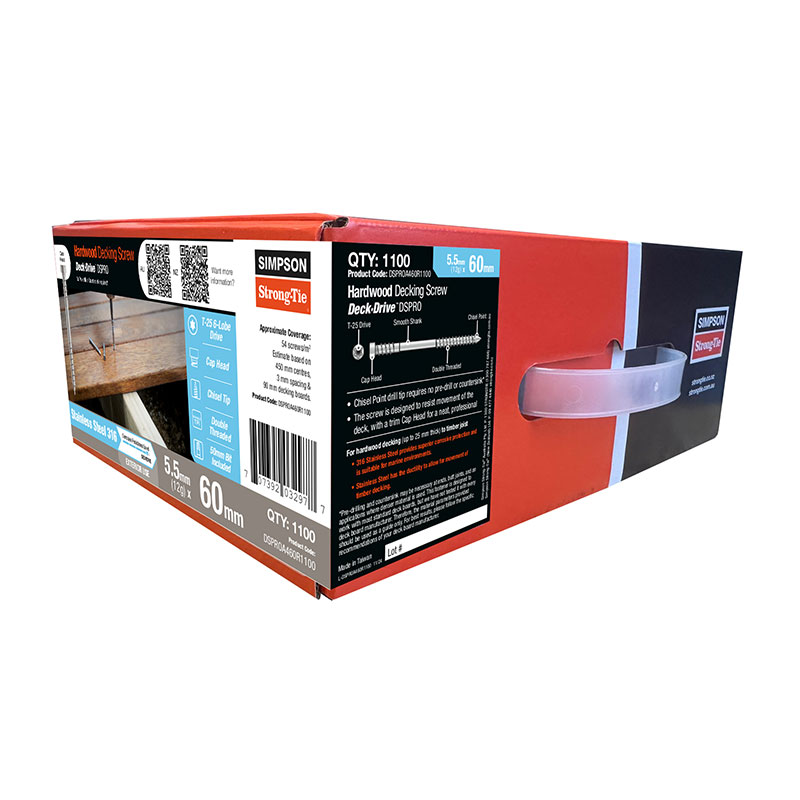

DSPROA460R1100_Packaging

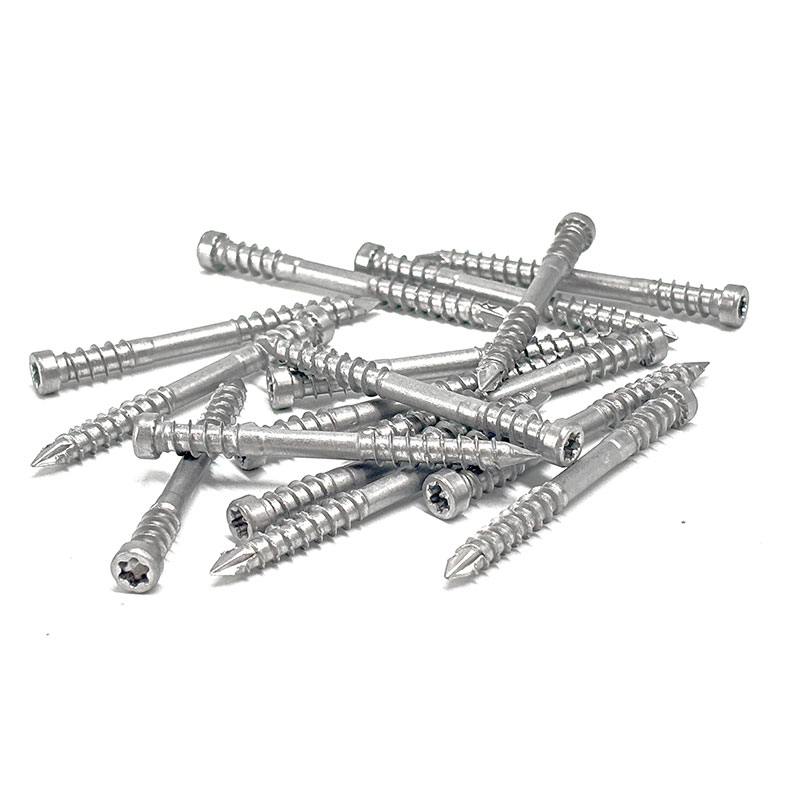

The DSPRO Hardwood Decking Screw is a powerful fastening solution for hardwood decking. The screw is designed to resist movement of the deck with a Cap style head for a neat, professional finish. The additional second thread helps pull the deck boards to the joist providing a more secure clamping effect.

Material & Finish

316 Stainless Steel

Features & Benefits

Cap style head with underhead teeth for a neat, professional finish in hardwood decking.
The Chisel point assists by substantially reducing the need for pre-drilling, which is usually required in hardwood.*

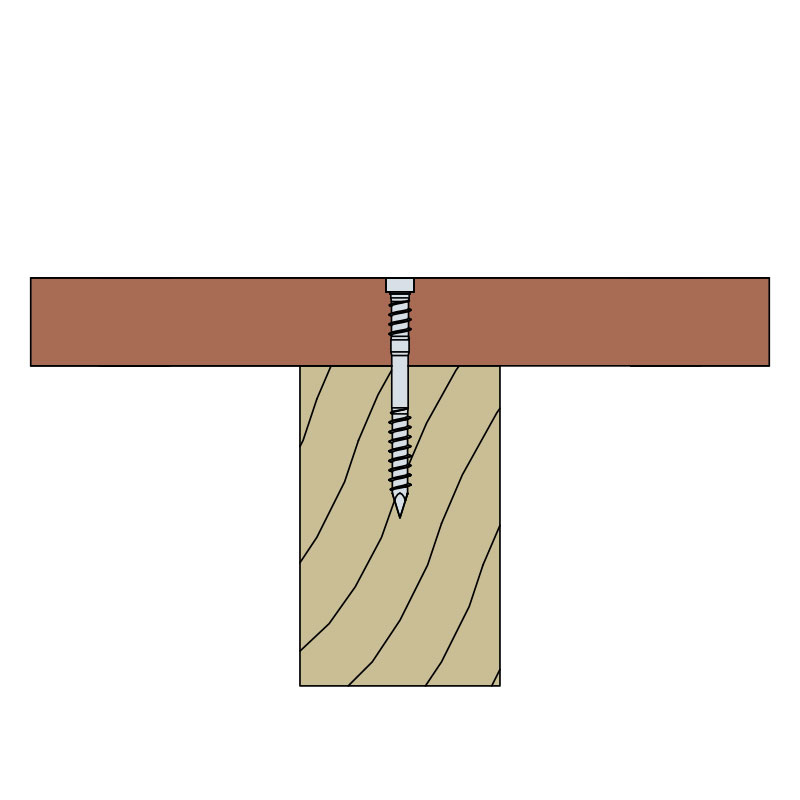

The additional second thread helps pull the deck boards to the joist providing a more secure clamping effect.
Type 316 'Marine Grade' Stainless Steel for highly corrosive environments.
Stainless Steel has the ductility to allow for movement of timber decking.
6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and beautiful looking finish.

* For best results, pre-drilling & countersinking may be required on some hardwood timber varieties or when drilling close to the edge.

Applications

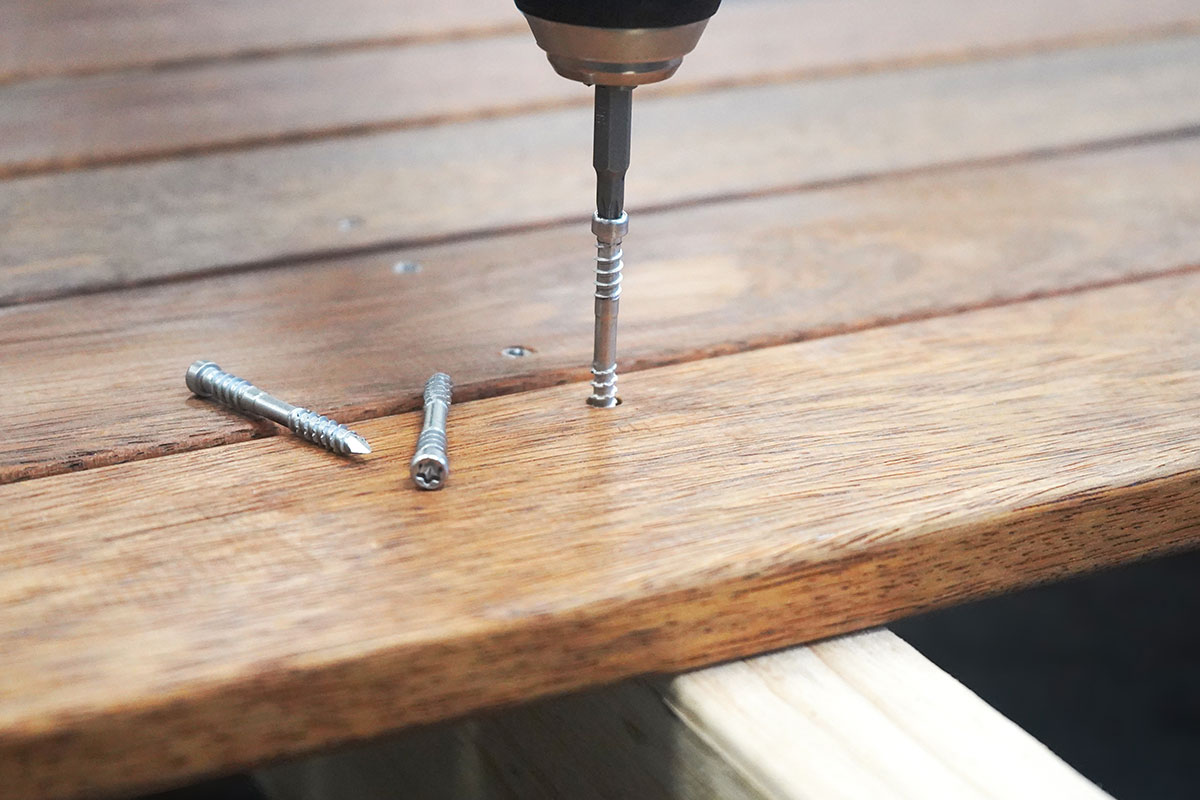

For hardwood and softwood decking in residential or commercial applications
Decking on board walks in highly corrosive environments
Exterior cladding or paneling for patio privacy screens
Certain exterior fascia board applications

Decking Calculator

Model No. Table

Specifications - Hand-drive

Model No.	Size	Thread	Point	Material & Finish	Box Qty	Drive Size	Replacement Bit
DSPROA450R250	12G x 50mm	Coarse Threads (Double)	Chisel Point	316 Stainless Steel	250	T25, 6-lobe	BIT25T-2-R2
DSPROA450R1100	12G x 50mm				1100
DSPROA460R250	12G x 60mm				250
DSPROA460R1100	12G x 60mm				1100
Special 50mm T-25 DSPRO Driver Bit included with every box of screws.

PLEASE NOTE: Pre-drilling and countersink may be necessary at ends, butt joints, and on applications where denser material is used. Follow the board manufacturer's recommendation where applicable. WARNINGS: Always wear PPE during installation. Corrosive environments, exposure to water, salt air, or chemicals (including some wood preservatives) may cause early failure. Click here for Corrosion Information, Important Information & General Notes.

Specifications - Accessories

Model No.	Description	Ctn Qty

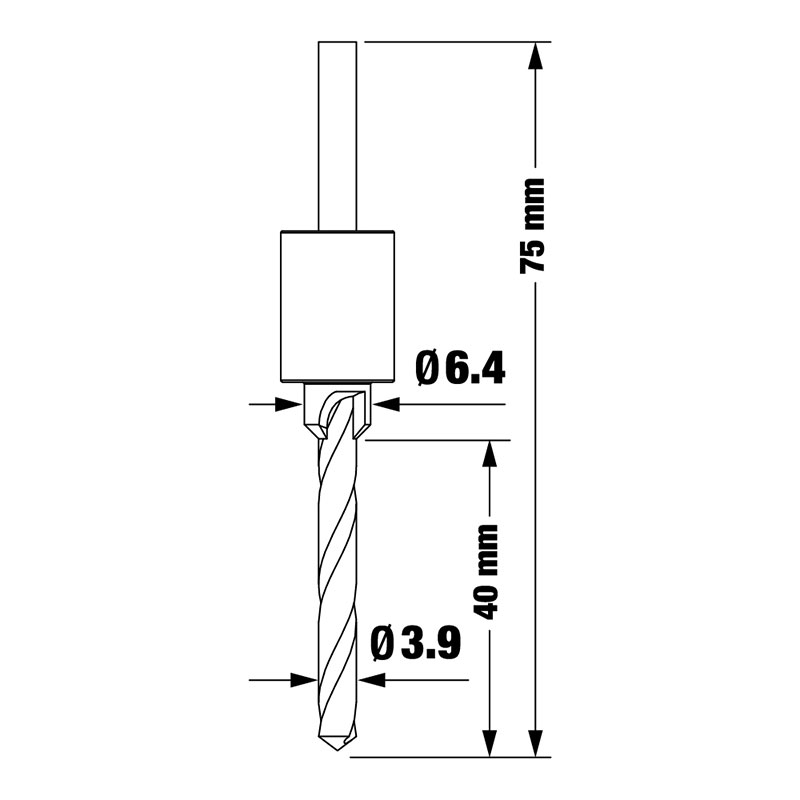

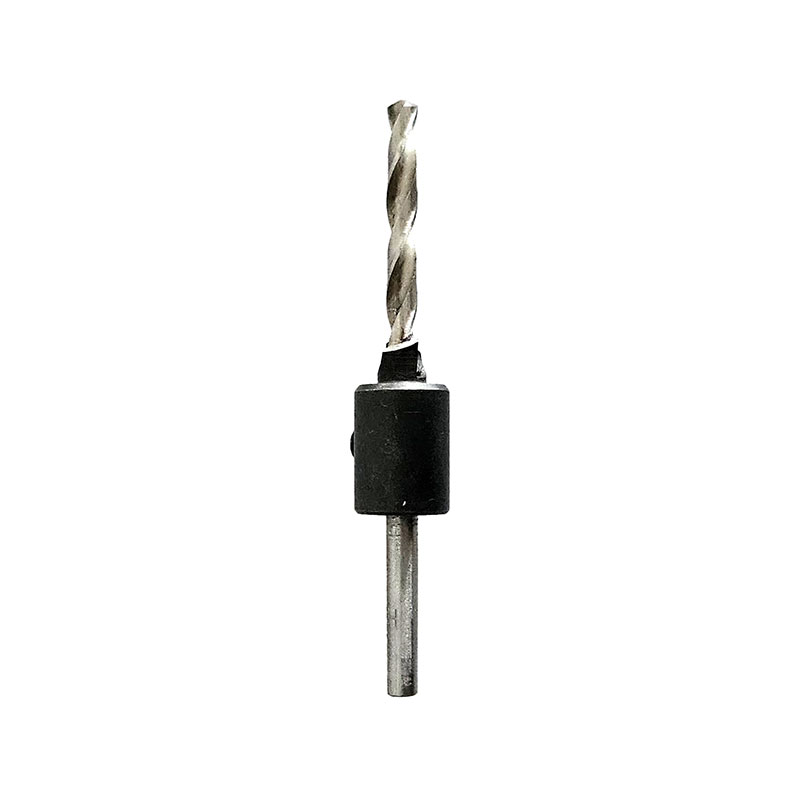

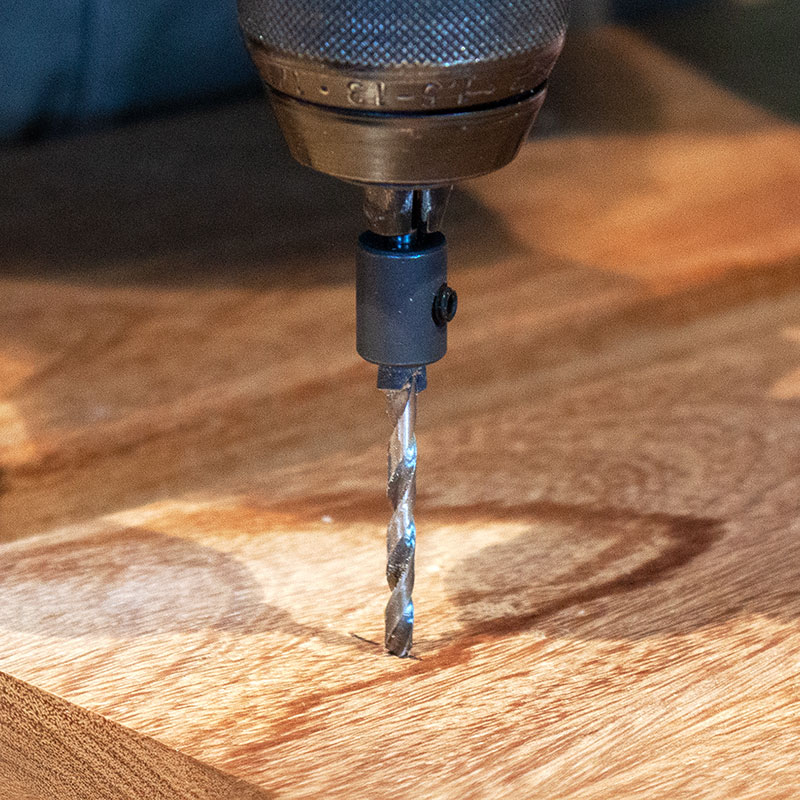

DBWOODDSPRO	Countersink Drill Bit for DSPRO - 3.9mm dia. countersink bit, 6.4mm dia. reamer. 1/pack	20
