SDWS16 Framing Screw
SDWS16 Framing Screw
SDWS16
SDWS16
Illustration
Illustration

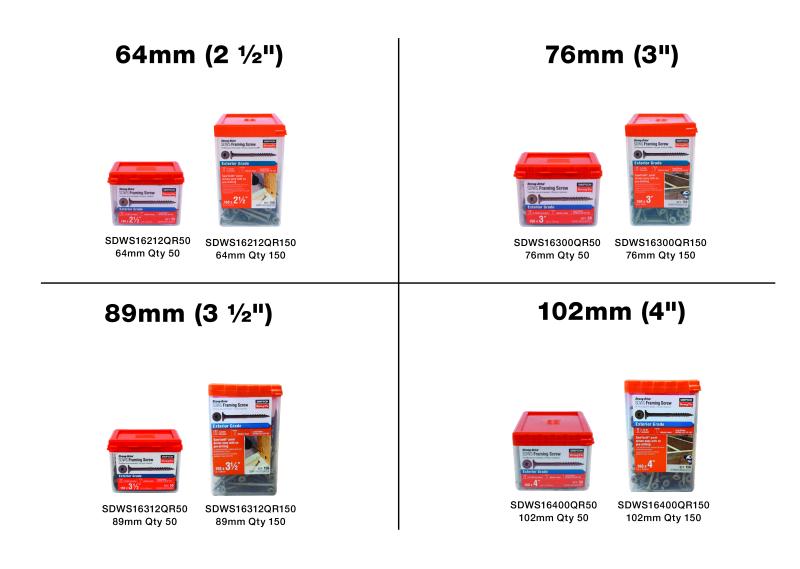

SDWS16312QR50 Pack
SDWS16312QR50 Pack

Superior to nails in holding power and pullout resistance

The SDWS16 screw is suitable for replacing nails in many framing applications where you are wanting a more secure and precise connection, especially if you require greater holding power and pullout resistance, it can also be easily removed if required.

The screw has a SawTooth™ point that makes for fast installations without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T-25 bit holds the 6-lobe recess tightly, reducing cam-out and head stripping.

Material

Carbon Steel

Finish

Quik Guard® Coating​

Features & Benefits
  • Large washer head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (11mm head dia.)
  • SawTooth™ point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
Applications

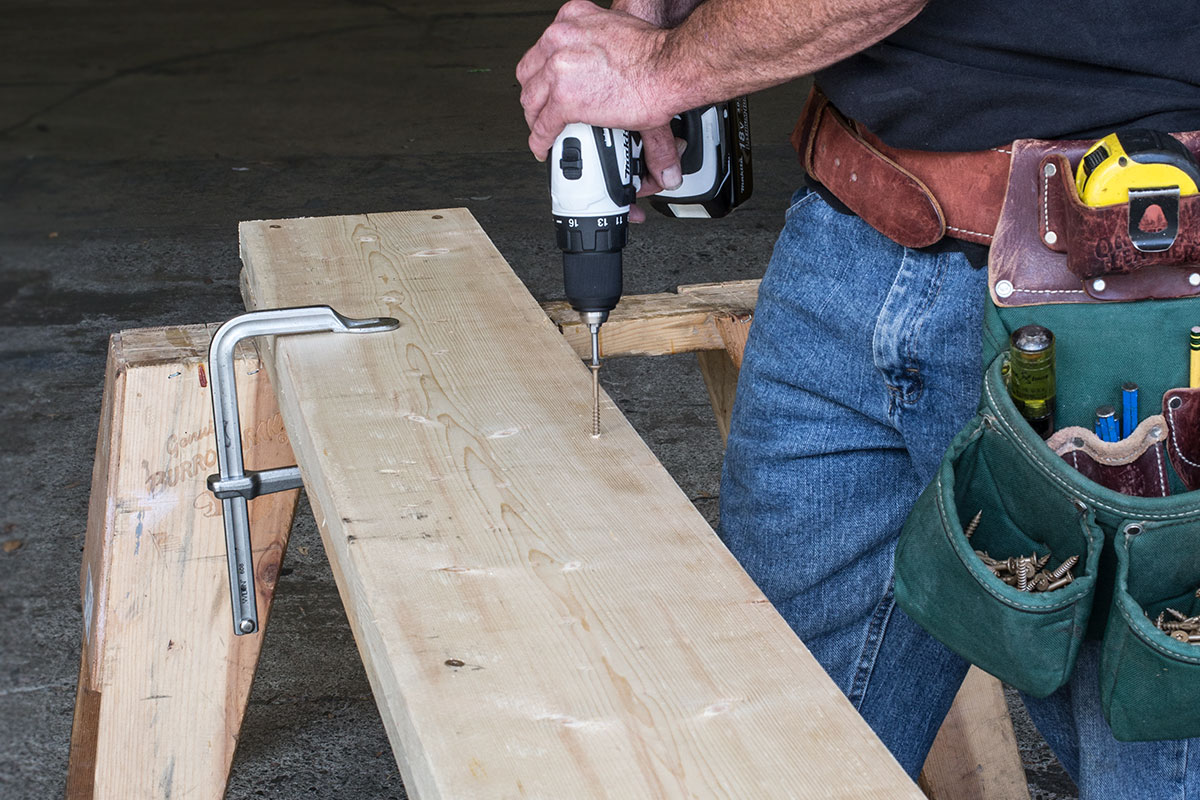

  • Multipurpose timber-to-timber connections, including timber framing, indoor/outdoor projects
  • Batten Tie-Downs
  • Beam Construction (laminating timber members)
  • Framing Connections
  • Joist or Rafter Connections
  • Purlin to Rafter/Truss Connections
  • Timber Battens
  • Fence Rails and Capping
Model No. Table

Model No.

Size

Head Marking (##)

Thread

Point

Material & Finish

Box Qty

Drive Size

SDWS16312QR50

4.0 x 89mm

3.5

Serrated Threads

SawTooth™ Type-17 Point

Carbon Steel
Quik Guard
® Coating

50

T25, 6-lobe



PLEASE NOTE:

Pre-drilling and countersink may be necessary at ends, butt joints, and on applications where denser material is used. Follow the board manufacturer's recommendation where applicable. WARNINGS: Always wear PPE during installation. Corrosive environments, exposure to water, salt air, or chemicals (including some wood preservatives) may cause early failure. Click here for Corrosion Information, Important Information & General Notes.



Alternative to NZS3604:2011

The Simpson Strong-Tie Strong-Drive SDWS16 and SDWS22 shank, major thread, and root diameter dimensions meet or exceed the 10g and 14g screw sizes in NZS3604:2011 for fixing Roof Battens and Purlins to rafters or trusses.

Fastener

Description

NZS3604* Capacities

Simpson Strong-Tie equivalent screw size

Gun Nail

2 /90 x 3.15mm

0.8 kN Fixing Capacity

1 /SDWS16 x 89mm

Screw

1 /10g x 80mm

2.4 kN Fixing Capacity

1 /SDWS16 x 89mm

Screw

1 / 14g x 100mm

5.5 kN Fixing Capacity

1 /SDWS22 x 102mm



*Table 10.10 of NZS3604:2011
