EGCM Concealed Beam Hanger

Product Tabs

Product Details

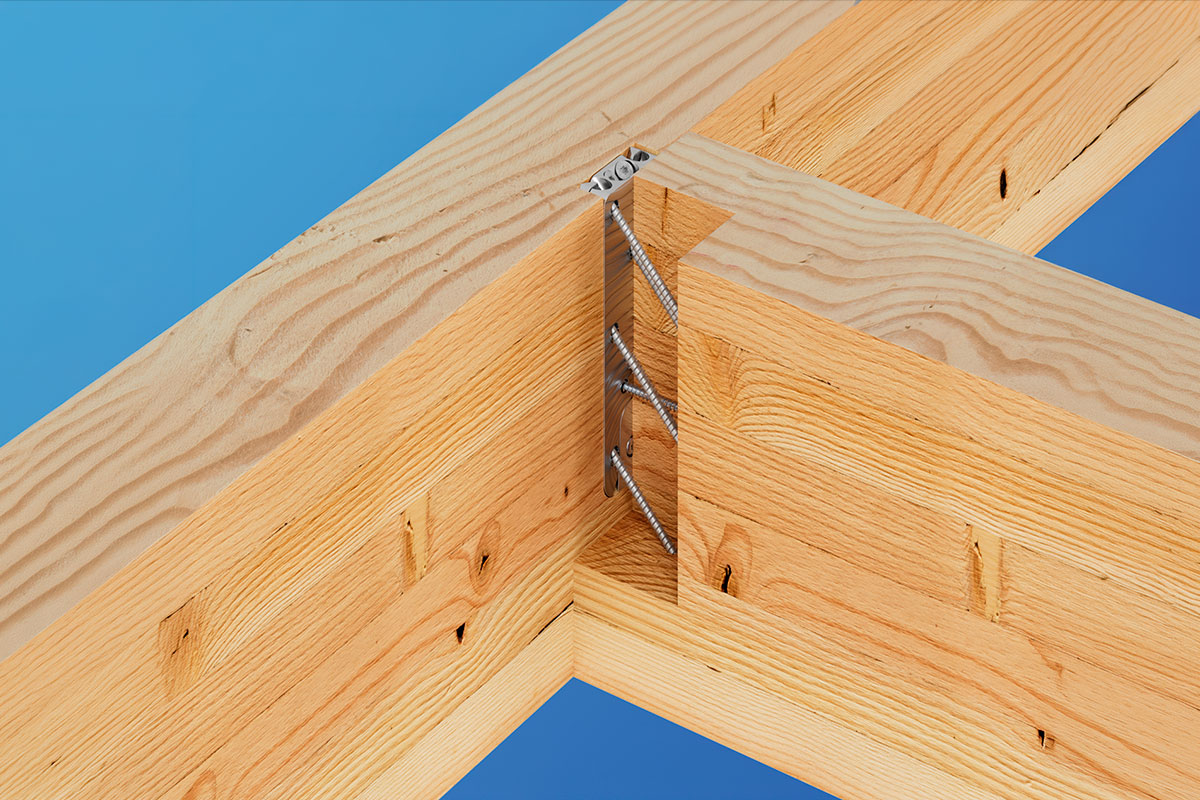

EGCM Concealed Beam Hanger
EGCM Concealed Beam Hanger

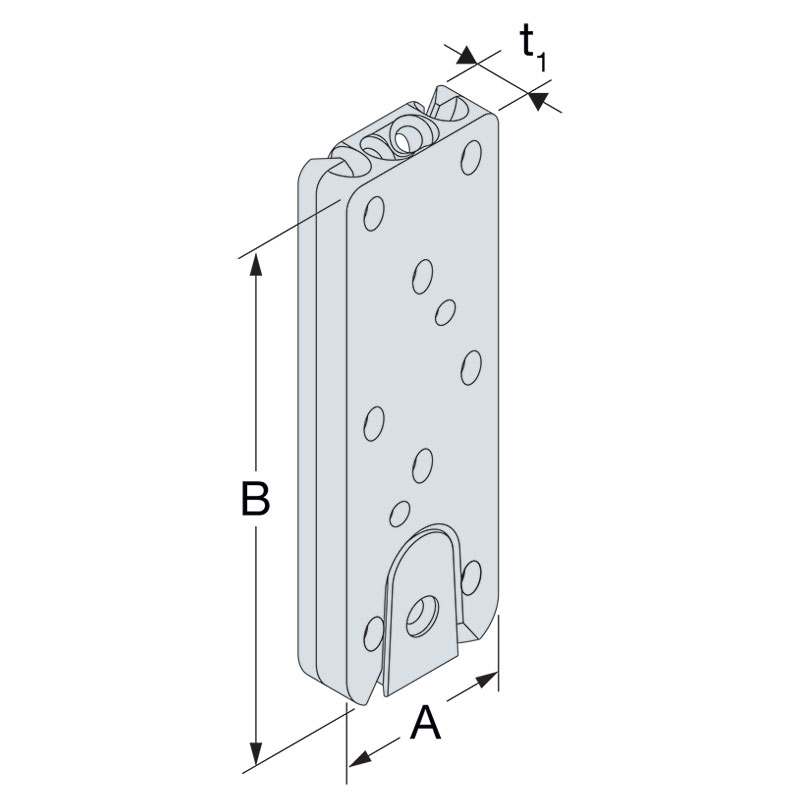

EGCM Concealed Beam Hanger Illustration
EGCM Concealed Beam Hanger Illustration

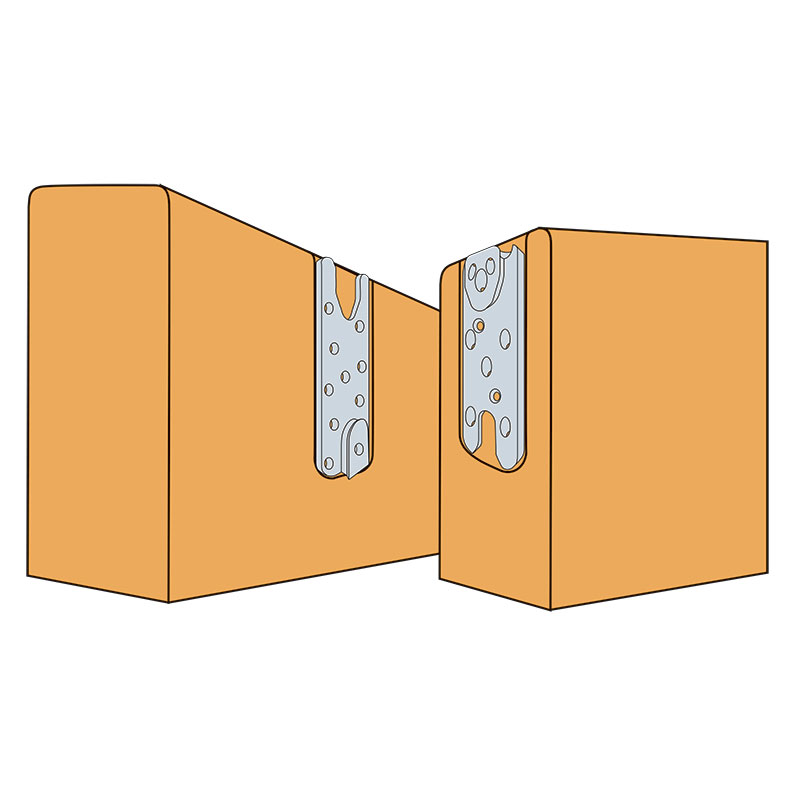

EGCMConcealed Beam Hanger Installation
EGCMConcealed Beam Hanger Installation

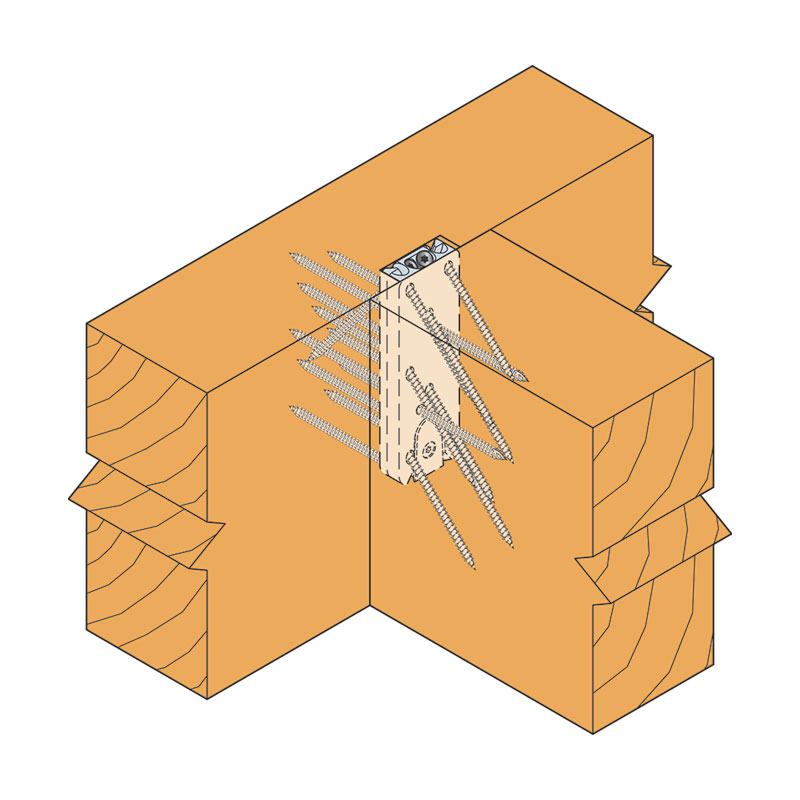

EGCM Installation Recess Fit
EGCM Installation Recess Fit

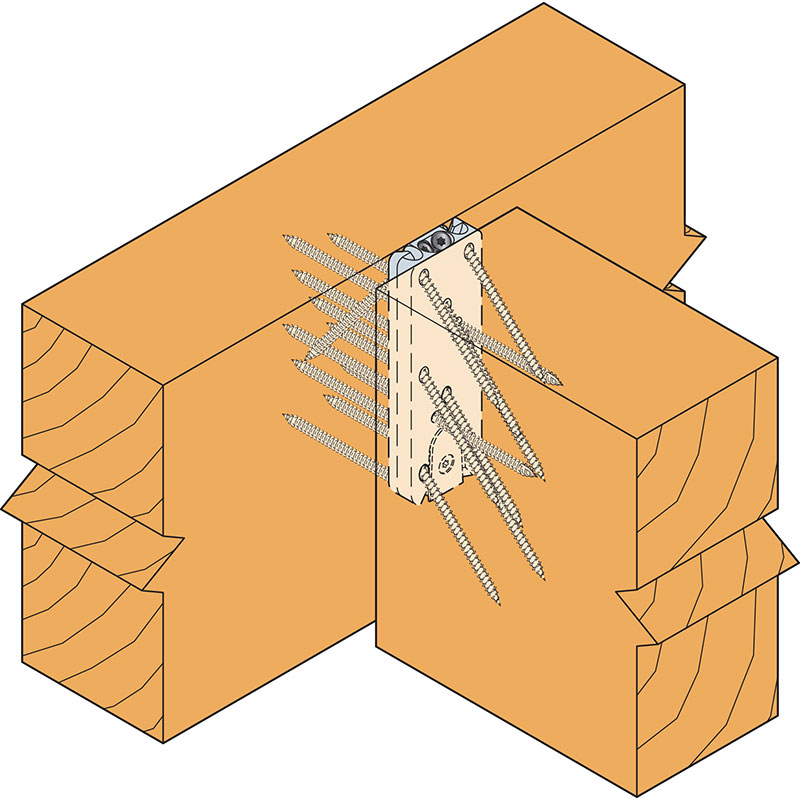

EGCM Installation Surface Fit
EGCM Installation Surface Fit

The EGCM concealed beam hanger provides a load-tested beam connection with minimal visible hardware. Interlocking plates can be recessed into the beam or post and lock together to create a secure structural connection with a near-invisible joint.

Material & Finish
  • Structural-grade aluminium, heat-treated for strength, and certified to meet specific engineering standards.
  • Joist Plate: 10mm/Locking Tab 6mm (overall 16mm).
  • Header Plate: 6mm/Locking Tab 10mm (overall 16mm).
Features & Benefits
  • The EGCM concealed connector comes in two parts. A joist plate and header plate, both parts are attached using the CSFT6.0 or TTUFS5.0 depending on load and application. No slots or dowel holes are necessary, speeding up installation.
  • Faster than other time-consuming methods and requires removal of less beam material.
  • Four sizes address common beam sizes.
  • Header Plate can be routed into the supporting beam or post to create a near-invisible joint.
  • Concealed connection.
  • Multiple applications.
  • Can be used in applications requiring uplift resistance.
Applications
  • Interior use only in wood-to-wood connections.
Model No. Table

Model No.

Joist Size (mm)

Product Dimensions (mm)

Header Plate Holes (Ø6.5mm)

Joist Plate Holes (Ø6.5mm)

Width

Min Hight

Max Hight

A

B

t1

EGCM90

75

135

180

50

90

16

6

7

EGCM150

75

195

270

50

150

16

11

12

EGCM210

75

255

360

50

210

16

18

15

EGCM270

75

315

450

50

270

16

21

18


Partner Products

Model No.

Size (mm)

Material & Finish

Box Qty

Drive Size

CSFT6.0x85 (77309)

6.0 x 85

Zinc Flake

100

T-20, 6-lobe

CSFT6.0x110 (77310)

6.0 x 110

Zinc Flake

100

T-20, 6-lobe

TTUFS5.0x50 (77634)

6.0 x 50

White Electrogalvanised Steel

200

T-25, 6-lobe





Brochures & Catalogues

Brochures and Catalogues

PDF icon Flyer - EGCM Concealed Beam Hanger
Technical Data & Docs

Technical Data Sheets

PDF icon Technical Data Sheet - EGCM

Warranty

Warranty

Masterspec
Alternative Products

Alternative Products

CBH

CBH Concealed Beam Hanger

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers.

ETB

ETB Concealed Beam Hanger

Please note: The ETB is being discontinued and replaced by the new EGCM.
