Home / Products / EP-XP Extreme Performance Epoxy Anchor

EP-XP Extreme Performance Epoxy Anchor

Product Tabs

Product Details
EP-XP
EP-XP
EP-XP
EP-XP
EP-XP
EP-XP
DT585
DT585
EP-XP
EP-XP
Hole Cleaning Nylon Brushes & Blow-out Pump
Hole Cleaning Nylon Brushes & Blow-out Pump
Acrylic Screen Tubes
Acrylic Screen Tubes

The ultimate strength for Commercial applications.

EP-XP is an extreme performance slow cure pure epoxy with seismic ETA C1 and C2, ideal for commercial and residential applications with heavy-duty anchoring, such as structural steel and rebar connections.

Material
  • Pure Epoxy

Base Material

  • Cracked and non-cracked concrete, light-concrete, porous-concrete, solid masonry,
  • hollow brick, natural stone, wood
Features & Benefits
  • Suitable for use in cracked and non-cracked concrete M8 to M30 / rebar Ø8 to Ø40
  • Extreme performance for structural applications with high loads, ideal for commercial use
  • Qualified for use in seismic applications C1 and C2
  • Slow cure formulation ideal for deep embedment

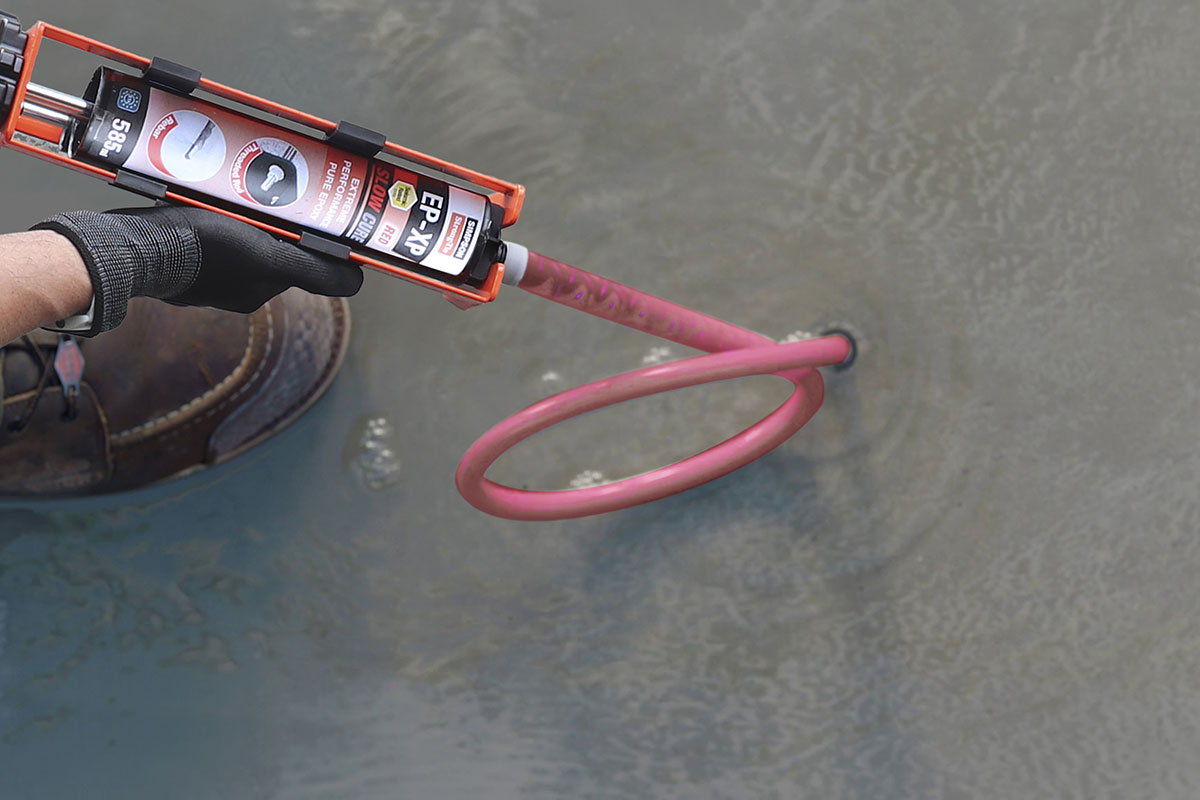

  • Can be used in dry and damp conditions, wet or flooded environments (not sea water)

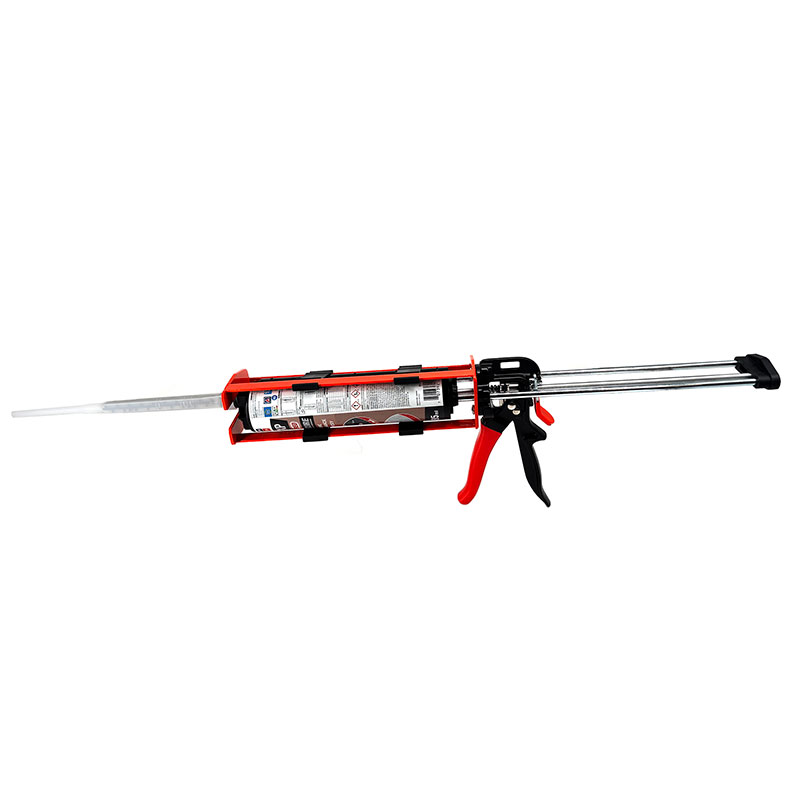

  • 585ml side-by-side cartridge is compatible with the Simpson Strong-Tie DT585 dispensing tool
  • Installation temperature of base material: 0°C to +40°C
  • Service temperature: -40°C to +80°C
  • Styrene Free
  • Shelf-life of 24 months from date of production
Installation

Refer to product label for hole and cartridge preparation, installation and technical data.

Applications

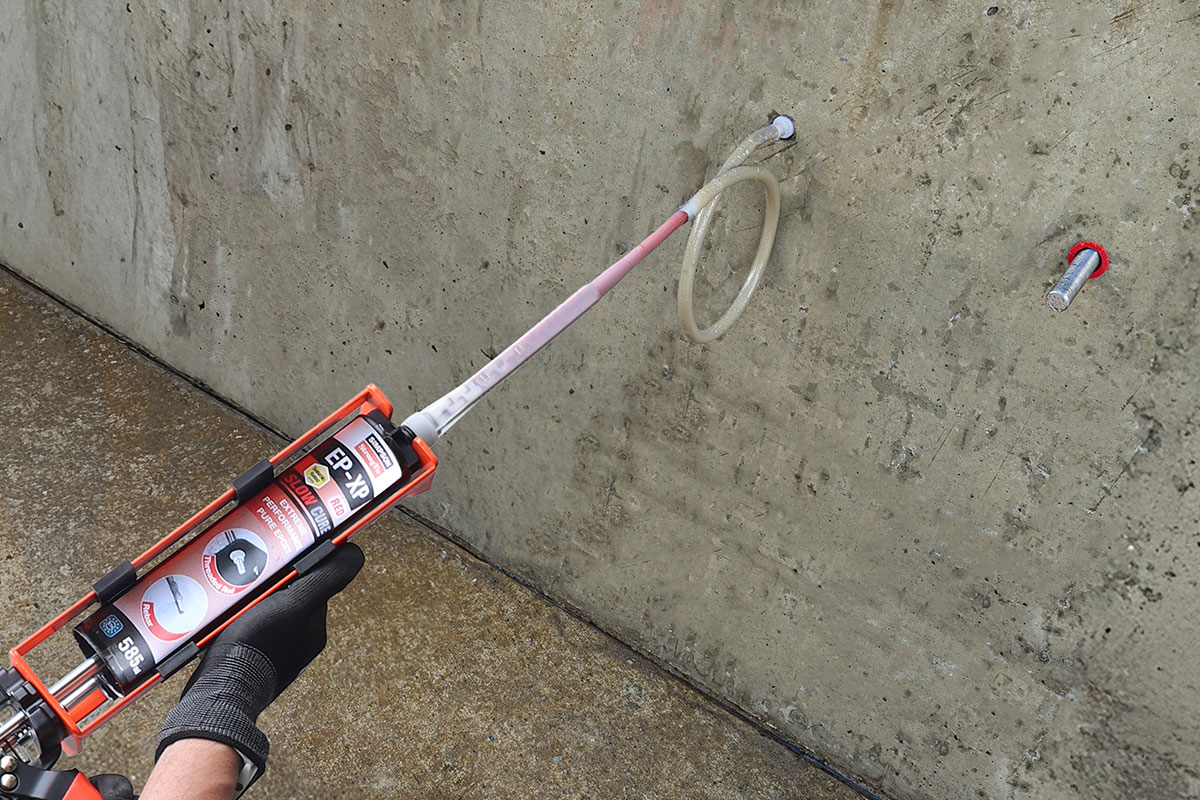

  • Post-installed Rebar

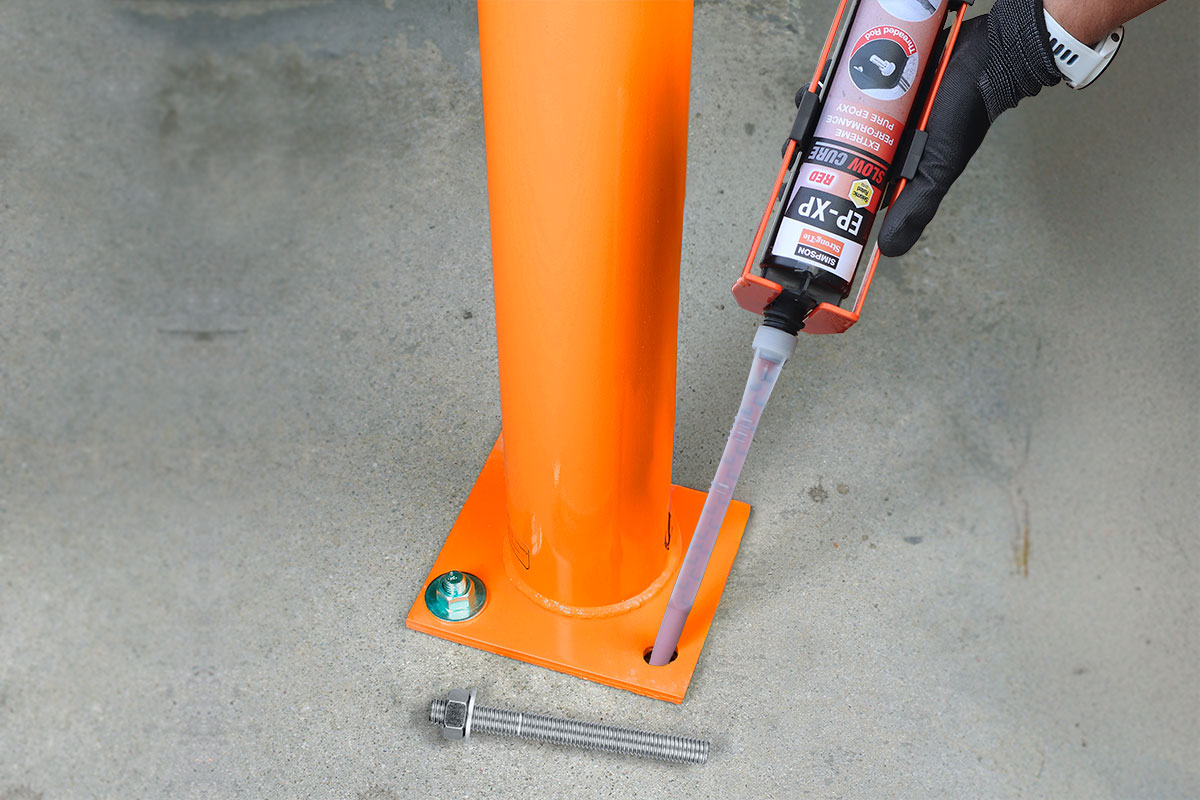

  • Threaded Rod Anchoring

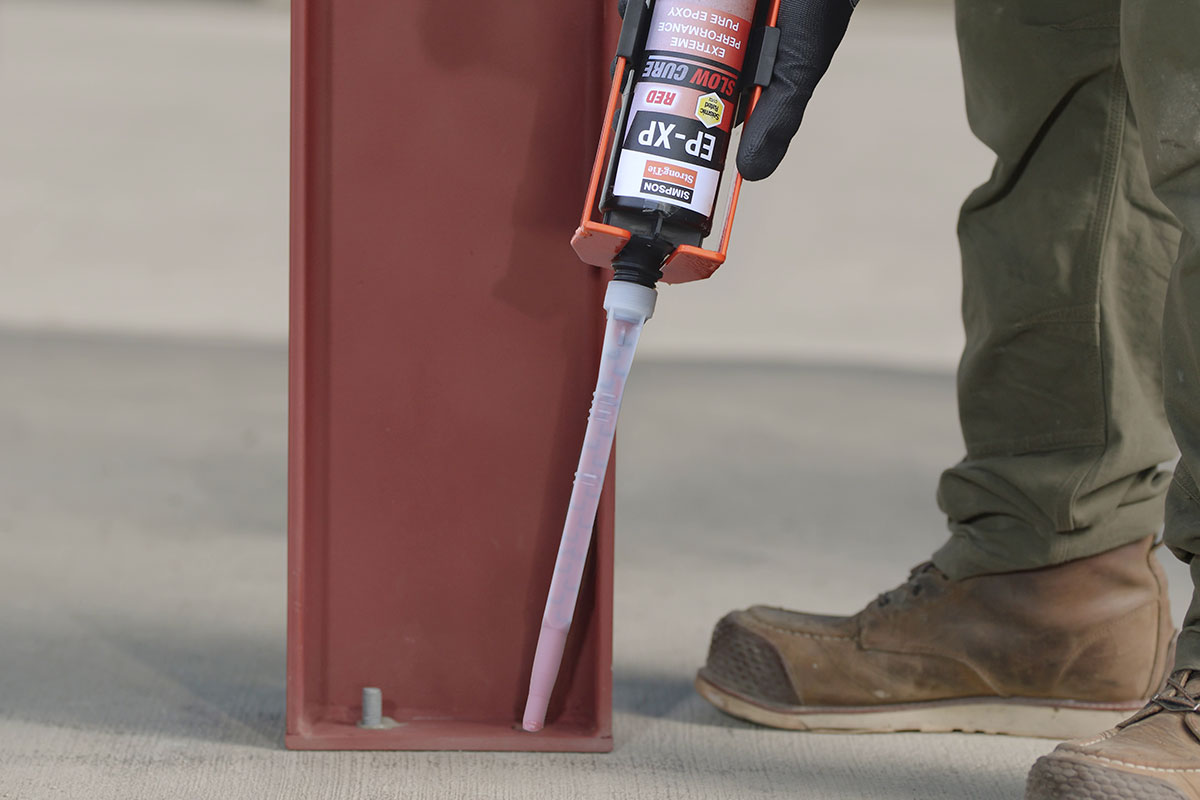

  • Structural Steel
  • Steel Columns and Beams, Post Bases, Concrete Columns
  • Balcony Extensions
  • Facades, Safety Barriers
  • Fences, Gates, Industrial Garage and Warehouse applications
Approvals
  • ETA-25/0483 for use in Concrete
  • ETA-25/0355 for Rebar
  • ETA-25/0652 for Bond Splitting
  • Fire Rated R120
  • NSF Certified (drinking water)
  • LEED tested for sustainable construction
  • 100 Years Working Life
  • VOC Compliant (A+ rating)
Model No. Table

Model No.

Description

Size

Box Qty

EP-XP

Extreme performance pure epoxy chemical anchor with ETA including seismic C1 and C2 (Includes 1 mixing nozzles — MNXP)

585ml

12

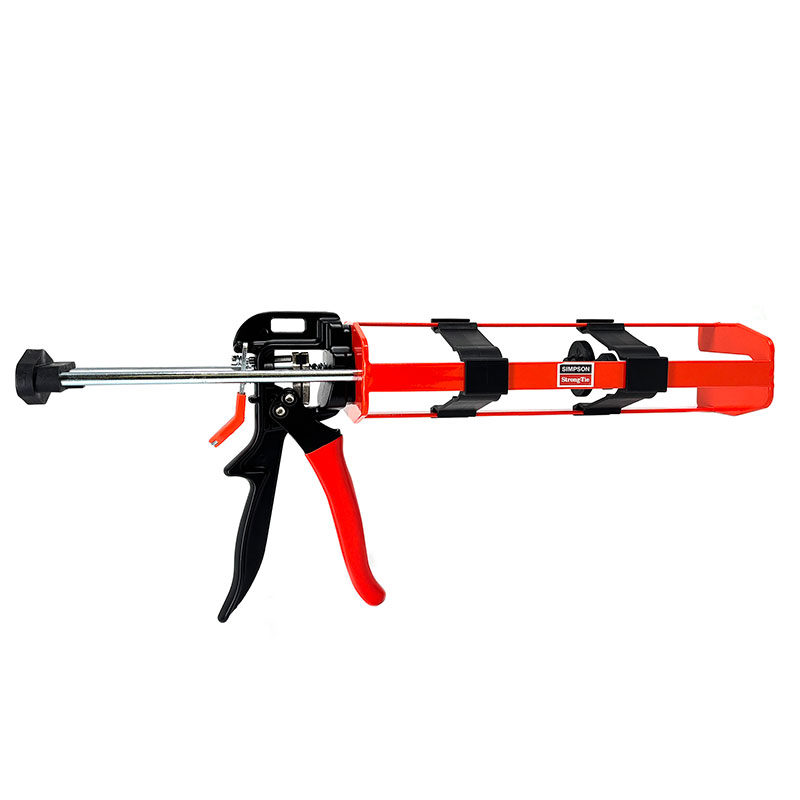

DT585

Manual dispensing tool for 585ml cartridges. See product here.

—

1

MNXP-RP10


Mixing nozzle for extreme performance chemical anchor range EP-XP and HY-XP. Pack of 10. See product here.

—

10



Brochures & Catalogues

Brochures and Catalogues

PDF icon Flyer - EP-XP Extreme Performance Epoxy Anchor
Technical Data & Docs

Technical Data Sheets

PDF icon Technical Data Sheet - EP-XP

Report

PDF icon ETA-25/0483 (Concrete)PDF icon ETA-25/0355 (Rebar)PDF icon ETA-25/0652 (Bond Splitting)PDF icon LEED AttestationPDF icon VOC Attestation

Warranty

Warranty

MSDS

PDF icon MSDS - EP-XP (A)PDF icon MSDS - EP-XP (B)
Masterspec
